Pallet Flow Racking

First-In, First-Out Dynamic Storage

Pallet Flow Racking

Dynamic racking that provides FIFO storage and moves products forward for faster picking and easy rotation.

Space Calculator

Space Efficiency

60-75% floor space utilization

Est. Cost Range

$200 - $400 per pallet position

Storage Type

FIFO

Industries

5+ Served

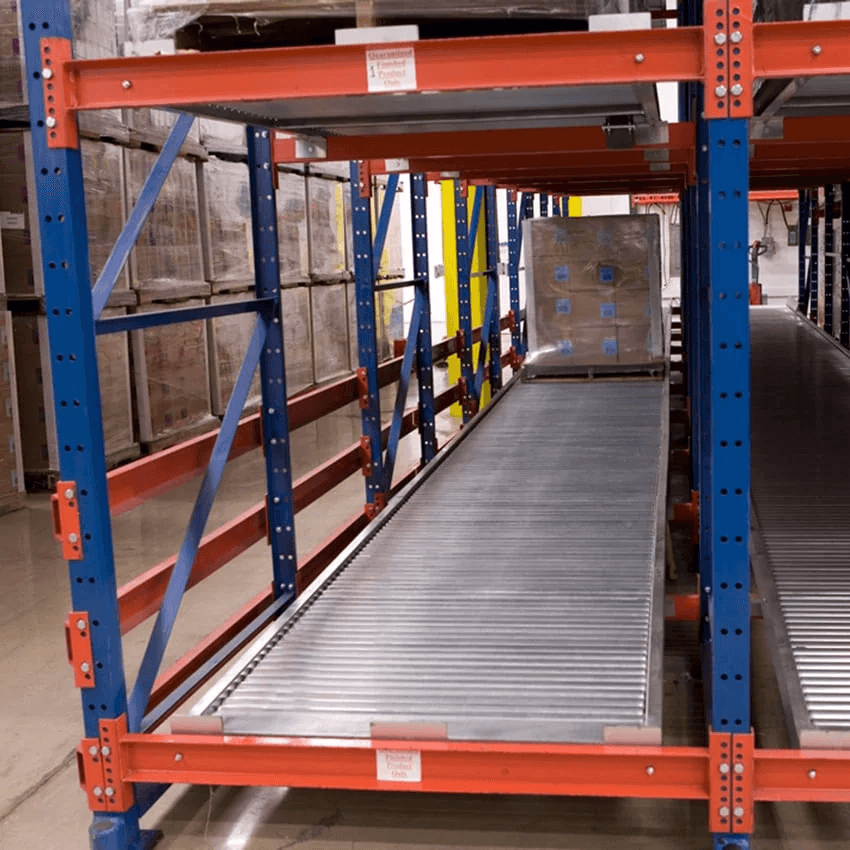

About Pallet Flow Racking

Pallet flow racking uses gravity-fed roller conveyors to automatically move pallets from the loading end to the picking end. This dynamic system ensures perfect First-In, First-Out (FIFO) inventory rotation, making it ideal for perishable goods and date-sensitive products. The system significantly reduces forklift travel time and increases picking efficiency while maximizing storage density.

Key Benefits

Automatic FIFO inventory rotation
Reduces forklift travel time by up to 50%
Increases picking efficiency
Perfect for perishable goods
High-density storage (60-75% space utilization)
Separates loading and picking aisles

Applications

  • Food and beverage distribution
  • Pharmaceutical warehouses
  • Cold storage facilities
  • High-volume distribution centers
  • Date-sensitive inventory management

Industries Served

Food & BeveragePharmaceuticalDairyProduceConsumer Goods

Specifications

Lane Depth2 to 20+ pallets deep
Load CapacityUp to 3,000 lbs per pallet
Pitch/Slope3-5% grade
Roller TypeFull-width or wheel rails
Speed ControlBrake rollers and speed controllers

Ready to Get Started?

Our experts will help design the perfect pallet flow racking solution for your facility.

Request Detailed Quote

Have Questions?

Frequently Asked Questions

Pallet flow uses gravity rollers for FIFO (First-In, First-Out) inventory rotation - pallets are loaded from one end and picked from the other. Push back uses nested carts for LIFO (Last-In, First-Out) - both loading and picking happen from the same aisle. Choose pallet flow for perishables and push back for non-date-sensitive items.

Explore More Solutions

Related Products

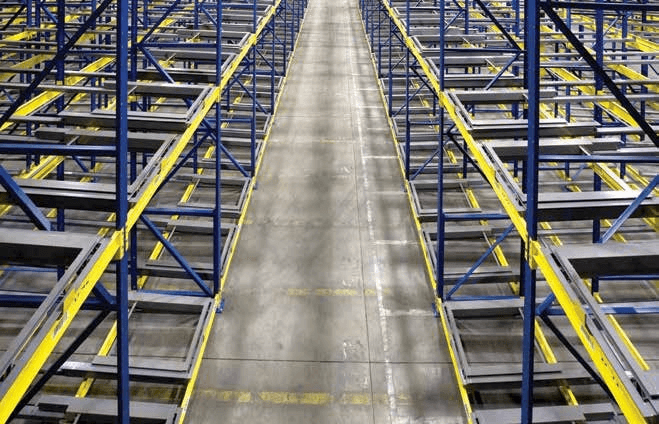

Bulldog Push Back

Bulldog Push Back

Pallets stored in LIFO on heavy duty pushback carts greatly improving storage capacity.

Learn More

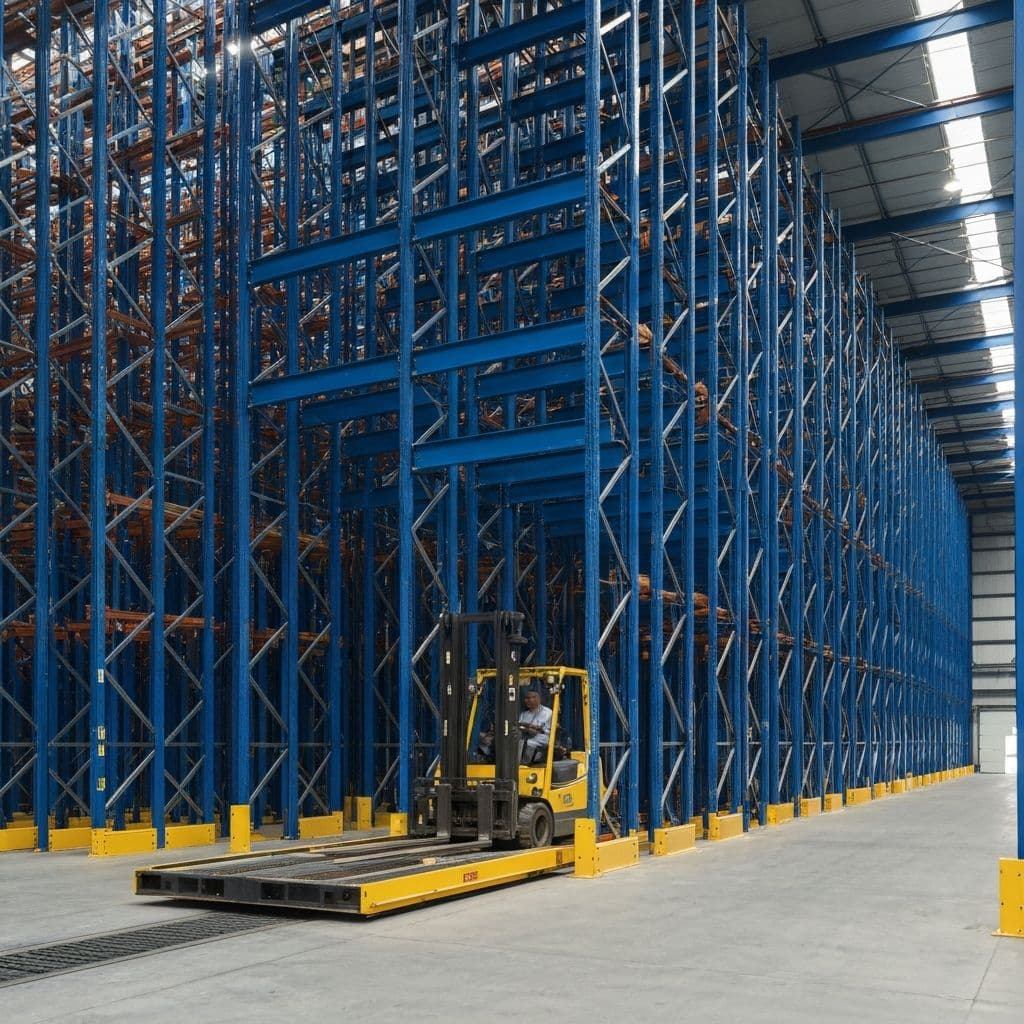

Drive-In and Drive-Thru

Drive-In and Drive-Thru

High-density bulk storage racking solution for LIFO or FIFO storage with dual sided access.

Learn More

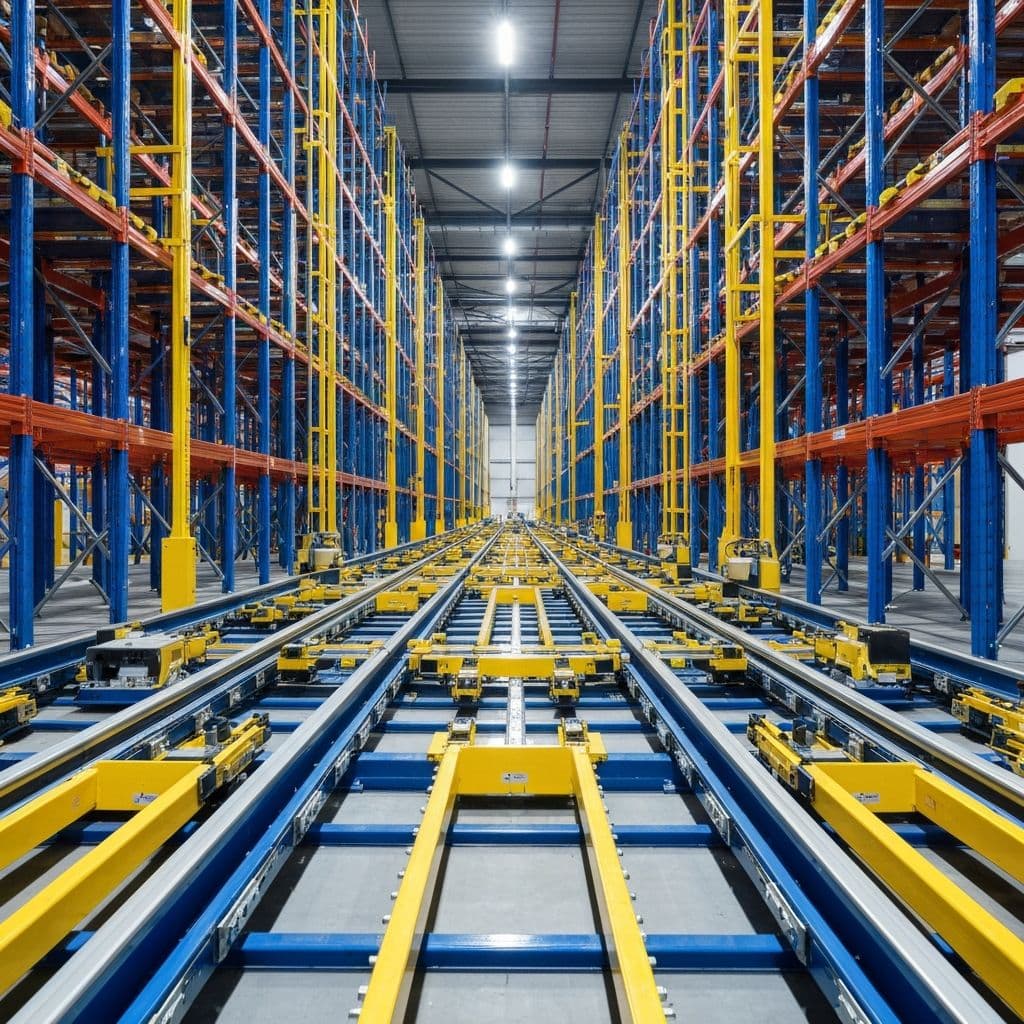

Bulldog Shuttle Systems
